High Temperature Resistance 150g 190g Hot Pressed Paper For Pressing PCB
Hot Pressed Paper Description
What is hot pressed paper ?
Hot pressed paper , also called Laminated Kraft Paper, it looks the same as normal kraft paper, but in fact
feature is very special. Hot pressed paper mainly used in the lamination process of FPC, PCB, CCL and other
industries, and plays the role of heat preservation, water absorption, decompression, buffering, heat transfer, etc.
What advantages do hot pressed paper have ?
1. The paper is flat and clean. There are no folds, wrinkles, holes, sand, etc.
2. Hot pressing has good elasticity and high flatness, which can significantly improve the quality of pressing
and improve the yield of products.
3. The paper surface is uniform in quantitative and uniform thickness.
4. The heat transfer performance is stable, uniform without fluctuation, and the heat transfer rate is moderate.
5. The moisture content of the paper is controlled below 8% to avoid the adhesion between the pads or the
steel plate during the pressing process.
6. The fiber structure is uniform, and the paper surface is smooth without wrinkles and foreign matter.
Hot Pressed Paper Specification
| Grammage (g/m2) | 150±5 | 190±5 |
| Thickness ( mm ) | 0.22±0.03 | 0.26±0.03 |
| Tensile strength (CD) | ≥5.0 | ≥5.0 |
| Tensile strength (MD) | ≥6.5 | ≥6.5 |
| Pressing times | 3~5 | 3~5 |
| Air permeability (um/Pa.s) | ≥6.35 | ≥6.35 |
| Moisture ( % ) | 3~8 | 3~8 |
| High temperature resistance (℃) | ≥230℃ | ≥230℃ |
Company profile
Guangzhou BMpaper co ., ltd is a professional paper factory since 2005, with more than 17 years importing
experience, now we have exported kinds of paper types to overseas, our main products is C1S coated board,
C2S art paper, Coated FBB board, GC1 paper board, SBS board, duplex paper, offset paper, bond paper,
brown kraft paper, MG white paper, stone paper, black paper board, absorbent paper, photo paper, grey board,
CAD plotter paper etc . If any demands, pls contact with us .
What we can do?
⇒ Offer high quality products
⇒ Free samples service
⇒ Support OEM service
⇒ Fast delivery time
⇒ Convenient transportation
⇒ Passed ISO, SGS certificates
Business with BMpaper
| Trade term | EXW, FOB, CIF, CNF |
| Delivery time | About 5 - 25 days |
| Payment term | TT, Paypal, western union |
| Loading port | Guangzhou or shenzhen port |
| Certificates | ISO, SGS |
| Location | Guangzhou city |

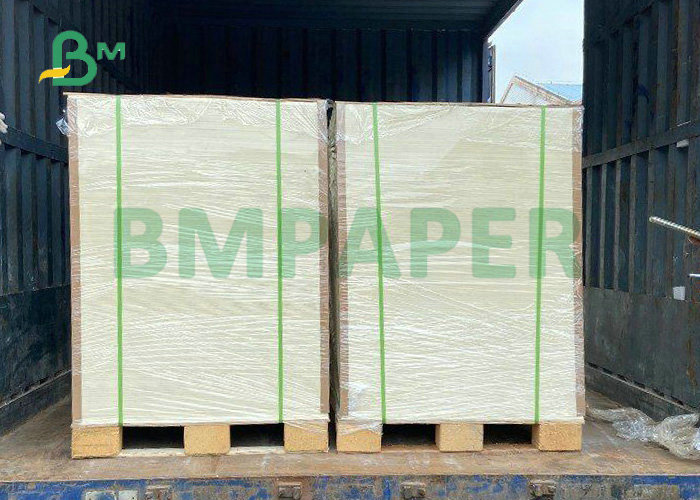

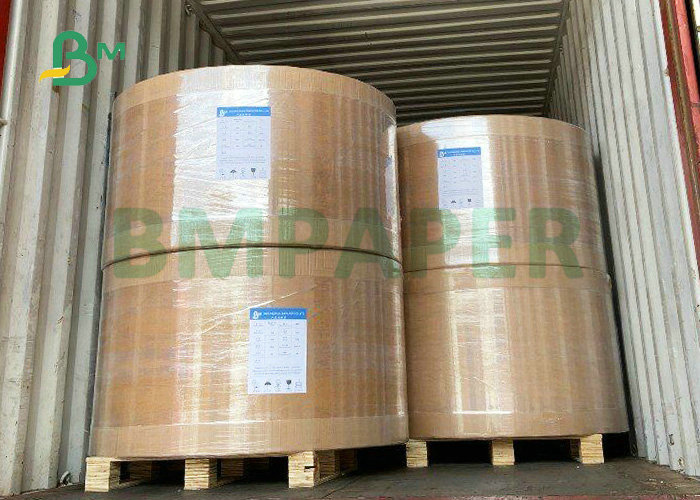

Hot Pressed Paper Packing
